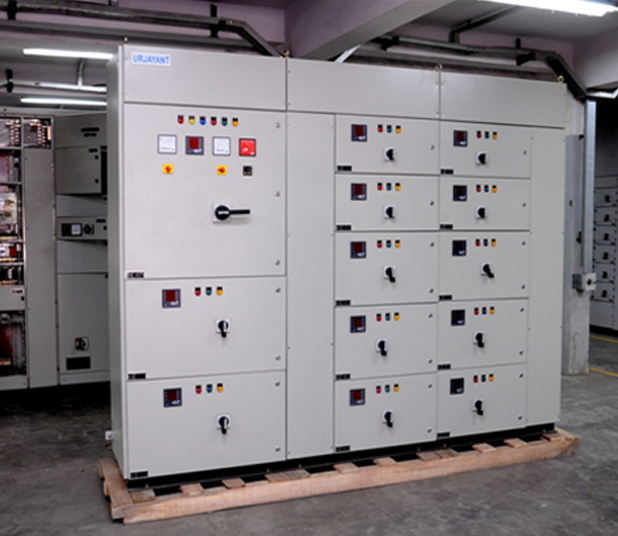

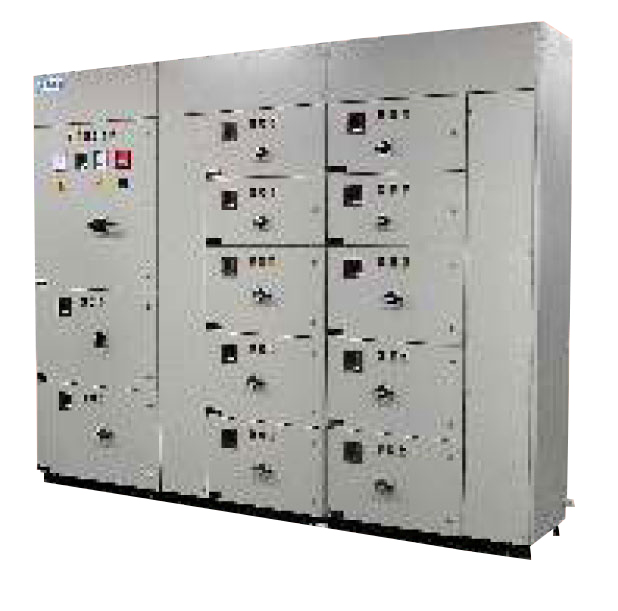

Motor Control Centers(MCC)

• Single or double front
• Compartmental or non compartmental With extendable design
• Type 2 co-ordinate chart selection
• Easy bus bar maintenance
• Energy Monitoring
• PLC Control

Power Distribution Panel (PDB)

• Modular Design
• Rear Access or Front Access available
• Cable entry Top/Bottom
• Easy Maintenance
• Additional Feeder can be extendable at site

Automatic Power Factor Correction System (APFC)

• Compartmental or non compartmental Design
• Thyristor or Contactor Switching
• Reactors for Harmonic control
• Microprocessor base 3 phase sensing controller
• Auto / Manual selection for Capacitor Bank

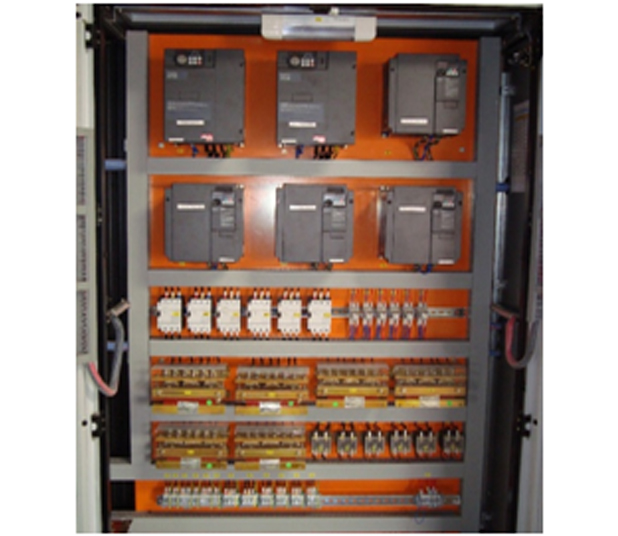

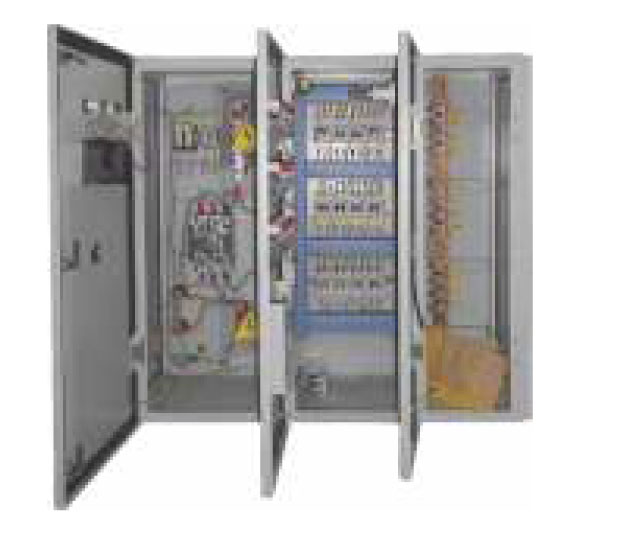

Drive & PLC Panels

• Designed and manufactured as per the international standards to meet customer requirement
• Trouble free solution
• Cable entry Top/Bottom
• Easy Maintenance
• High Efficiency

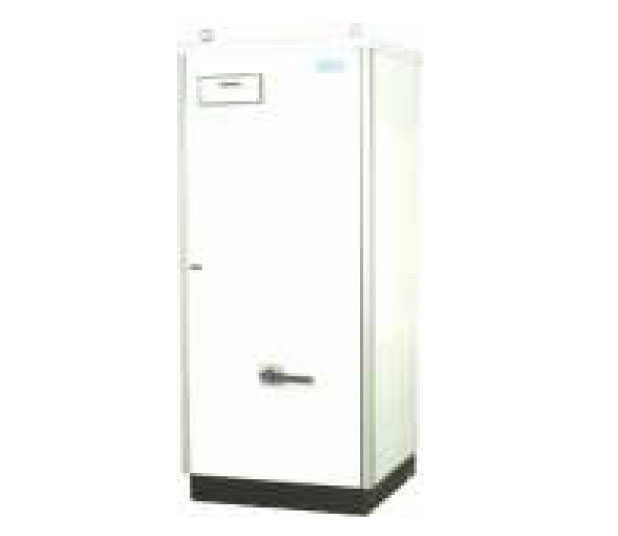

Automatic Mains Failure Panel (AMFP)

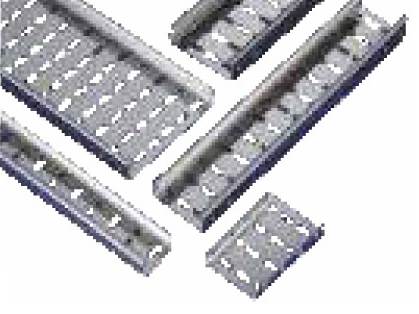

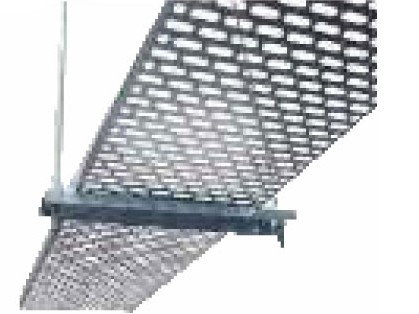

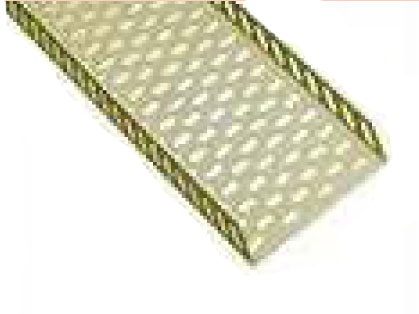

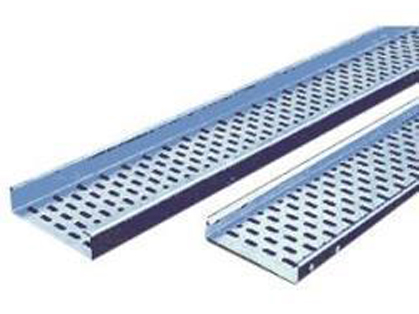

Feeder Pillar, Junction Box, Cable Trays

LTDB

• Ratings Available : 25/40/63/100/200 KVA
• Fabricated KIT KAT Type Design
• CPRI Type Tested
• MSEDCL Approved

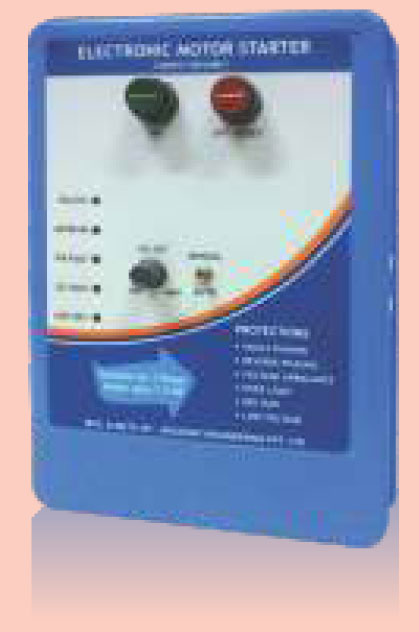

Electronic Motor Starter (Direct on Line)

PROTECTIONS

• Single Phasing
• Reverse Phasing
• Voltage imbalance
• Over Load
• Dry Run
• Low Voltage

INDICATIONS

• Healthy
• Moter ON
• Dry Run Fault
• O/L Fault
• Law Voltage

SPECIFICATION

• System Voltage : 415V, 3 Phase, 50Hz
• Current Range : 1-12A

FEATURES

• Electronic pushbuttons and fault indicating panel
• Inbuilt current sensing single phasing protects motor against single phasing
• Electronic Overload Protection calibrated with high accuracy and with inverse time current characteristics.
• Unbalance current ckt. provides protection against unbalance supply Voltage.
• Current Setting Knob provided
• Auto / Manual Switch provided
• START,STOP/RESET pushbutton

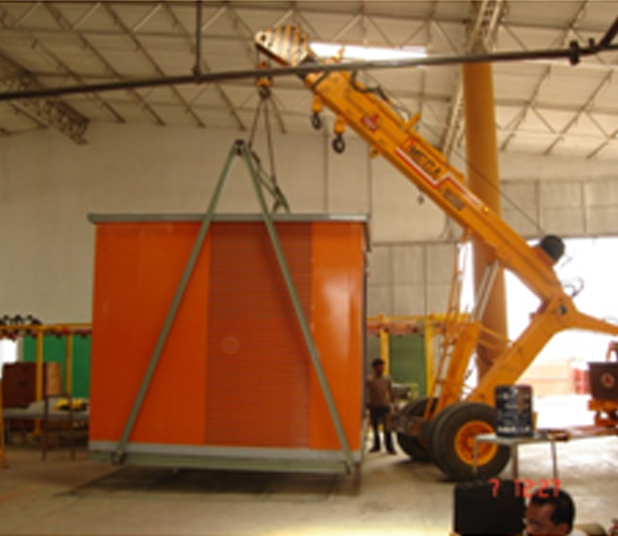

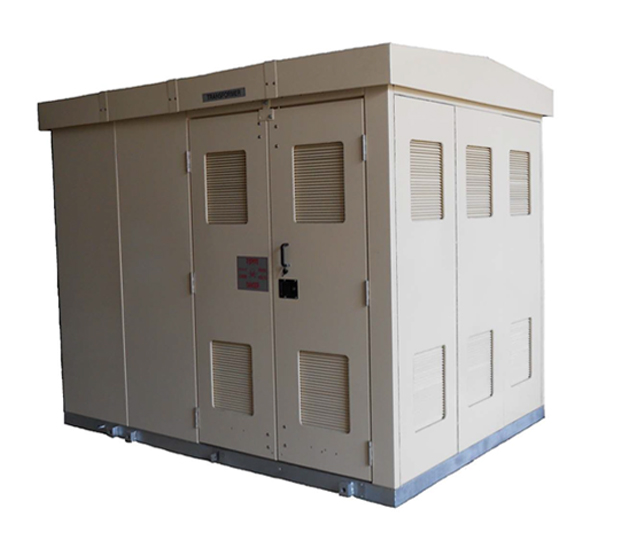

PACKAGED SUB STATION (PSS)

APPLICATIONS

Designed to suit for power distribution in urban areas where space availability is at a premium, safety is a necessity, vandalism likely, aesthetics advantageous and reliability of vital significance. the ideal places are commercial complexes, residential complexes, shopping malls, hospitals etc. the application can also be extended to the industries.

ADVANTAGES

• Compact in construction, occupies less floor area.
• Easy to operate and maintain.
• enhanced safety and flexibility
• Enclosure is divided into three segregated compartment i.e. HV, Transformer and LV
• Aesthetic appeal and Cost effectiveness
• Short lead-time for installation and reduction in operational costs

FEATURES

• Wide modular product range and conformance to IEC requirements
• 11 KV substations designed for easy installation and maintenance
• Suitable for outdoor application as per IP standards
• Optional Provision for draining of accidental oil spillage
• Shutter doors designed for padlocks and can also be fitted with a cylinder lock. Door closed with two point device securing door to the top and bottom frames
• Specially designed ventilation opening facilitates air circulation for enhanced cooling
• Designed for installation and ground level provided with foundation if installation below ground level
• Ventilation achieved by means of natural air circulation and also forced cooling used if so required

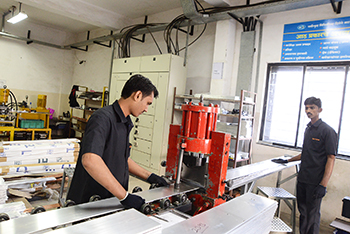

BUS DUCT ASSLY

Bus bars are used in any electrical power distribution system as a conductor of electricity within the switch board, panel or other electrical devices. The bus bars are strips made out of copper or aluminum metal. Bus bar enclosed in metal housing is a bus duct chamber which is fabricated using premium quality metal to withstand any climatic conditions. The enclosures are fitted using removable bolts. We offer a wide range of Bus Duct Chamber as per the drawing and specification provided by our clients. These are available in standardized as well as customized designs to meet the diverse requirements of our clients. These can also be altered to meet the specific requirements of our clients and hence ensuring their maximum satisfaction. Some of the salient features of our bus duct chamber fabrication are:

• Fabricated using rust protected steel sheet, these are suitable for mounting switch and distribution gear.
• Aluminum or Copper for Bus Bar
• Ensures efficiency and performance
• Available at affordable prices which makes them economical
• Ensures safe operation for power supply at distant places

OTHER

• Lighting Panels
• Distribution Boards
• Change Over Panels
• HVAC Panels
• Soft Starter
• Marshalling / Junction Boxes

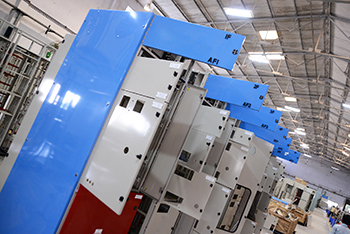

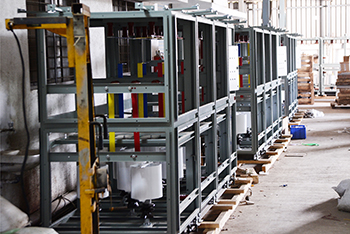

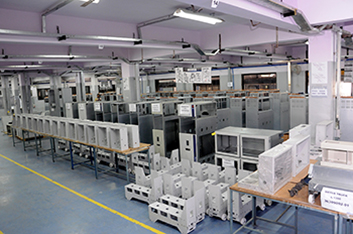

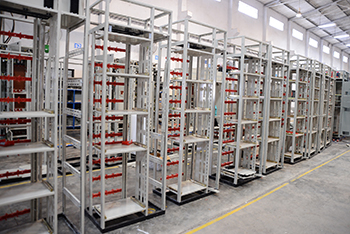

FABRICATION

Control Panel Fabrication: Control Panel fabrication involves fabricating a central panel both mechanical and electrical according to the drawings and designs given by client on the parameters of performance specification. Such kind of control panel fabrication is required in small to large industrial units involved in OEM Electrical, Steel, Chemical, food processing and automation industry. A typical control panel fabrication process comprise of fabrication, staging and testing.

We manufacture a quality imbibed range of Control Panel Fabrication as per the specifications and drawing provided by our customers. These are widely appreciated by our clients for its features such as durability and are robust to endure thermal and mechanical stress to ensure enhanced working efficiency. We ensure that our range of Control Panel Fabrication meet quality norms of international standards and provide our clients with maximum satisfaction. Some of the striking features of our control panel fabrication are:

• Fabrication done with precise engineering and using advanced technology Software/ Machineries.
• Available in required dimensions and mechanical plus electrical specifiactions
• Available at competitive rates in the market

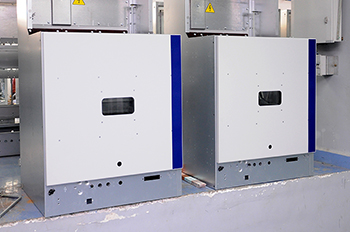

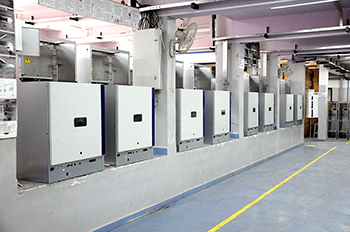

TAILOR MADE FABRICATION

• Control Panel Fabrication: Tailor made fabrication involves fabrication as per the specifications given by clients to include components. Equipments and machines used in various industries Tailor made fabrication involve manufacturing of structures out of steel or metal sheet. Metal sheets are fabricated, bended and fixed sing bolts and other adhesives. Different types of metals like steel, aluminum used for such kind of fabrication.
• We hold expertise in designing and manufacturing tailor made fabrications that match custom requirements of various small to large scale industries. Our adept technicians with the help of engineers deliver tailor-made products in conformation with the designs made available by the clients. Features of our tailor made fabrication are:
• Fabricated by match international industrial standards
• Fabricated out of corrosion free materials that make the structure sturdy to withstand different climatic conditions
• Available at competitive rates. Our adept technicians with the help of engineers deliver tailor-made products in conformation with the designs made available by the clients
